Схема 1

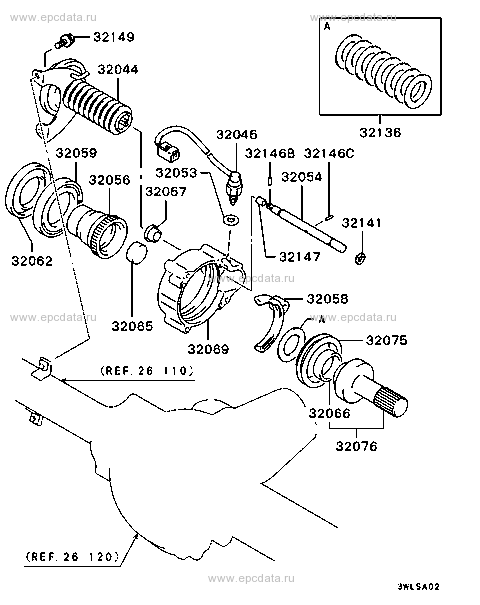

(FREEWHEEL CLUTCH ETC.)Click on part number or name to see its details and price:
| 32147 COLLAR,FREEWHEEL CLUTCH CONTROL
32075 SLEEVE,FREEWHEEL CLUTCH MAIN SHAFT
32053 GASKET,FREEWHEEL CLUTCH SWITCH
32058 FORK,FREEWHEEL CLUTCH SHIFT
32044 ACTUATOR,FREEWHEEL CLUTCH
32059 BEARING,FREEWHEEL CLUTCH GEAR
32056 GEAR,FREEWHEEL CLUTCH MAIN SHAFT
32057 OIL SEAL,FREEWHEEL CLUTCH ACTUATOR ROD
32045 SWITCH,FREEWHEEL CLUTCH
32054 ROD,FREEWHEEL CLUTCH ACTUATOR SHIFT
32141 SNAP RING,FREEWHEEL CLUTCH CONTROL
32149 BOLT,FREEWHEEL CLUTCH CONTROL
32146B PIN,FREEWHEEL CLUTCH CONTROL
32146C PIN,FREEWHEEL CLUTCH CONTROL
32062 OIL SEAL,FREEWHEEL CLUTCH DIFF SIDE
32076 SHAFT,FREEWHEEL CLUTCH MAIN
32065 CAP,FREEWHEEL CLUTCH GEAR
32069 HOUSING,FREEWHEEL CLUTCH
32136 SPACER SET,FREEWHEEL CLUTCH
32066 BEARING,FREEWHEEL CLUTCH MAIN SHAFT
