Схема 1
(WIPER & BLADE)Click on part number or name to see its details and price:
| 84106AR ARM ASSY,WINDSHIELD WIPER,RH
84193 NUT,WINDSHIELD WIPER
84110L BLADE,WINDSHIELD WIPER,LH
84110AL BLADE ASSY,WINDSHIELD WIPER,LH
84110AR BLADE ASSY,WINDSHIELD WIPER,RH
84110R BLADE,WINDSHIELD WIPER,RH
84129 MOTOR,WINDSHIELD WIPER
84124 LINK,WINDSHIELD WIPER
84106AL ARM ASSY,WINDSHIELD WIPER,LH
84198 BOLT,WINDSHIELD WIPER
84111 CAP,WINDSHIELD WIPER LINK
Go to top |
|

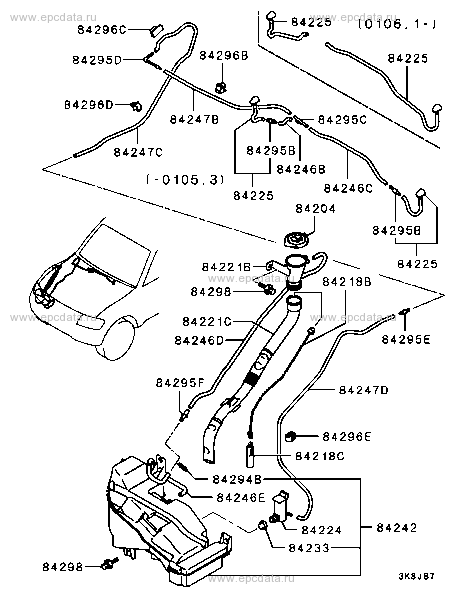

Схема 2
(WASHER..W/O HEADLAMP WASHER(-0207.3))Click on part number or name to see its details and price:
| 84218B FLOAT,WINDSHIELD WASHER TANK
84295B JOINT,WINDSHIELD WASHER
84225 NOZZLE,WINDSHIELD WASHER
84246C TUBE,WINDSHIELD WASHER
84246B TUBE,WINDSHIELD WASHER
84296B CLIP,WINDSHIELD WASHER
84247B TUBE,WINDSHIELD WASHER MOTOR SIDE
84296C CLIP,WINDSHIELD WASHER
84295D JOINT,WINDSHIELD WASHER
84204 CAP,WINDSHIELD WASHER TANK FILLER
84246D TUBE,WINDSHIELD WASHER
84246E TUBE,WINDSHIELD WASHER
84294B GROMMET,WINDSHIELD WASHER
84247C TUBE,WINDSHIELD WASHER MOTOR SIDE
84296E CLIP,WINDSHIELD WASHER
84247D TUBE,WINDSHIELD WASHER MOTOR SIDE
84295E JOINT,WINDSHIELD WASHER
84221B HOSE,WINDSHIELD WASHER TANK FILLER
84221C HOSE,WINDSHIELD WASHER TANK FILLER
84295F JOINT,WINDSHIELD WASHER
84296D CLIP,WINDSHIELD WASHER
84218C FLOAT,WINDSHIELD WASHER TANK
84224 MOTOR,WINDSHIELD WASHER
84233 GASKET,WINDSHIELD WASHER TANK INLET
84242 TANK,WINDSHIELD WASHER
84298 BOLT,WINDSHIELD WASHER
84295C JOINT,WINDSHIELD WASHER
Go to top |
|
Схема 3
(WASHER..W/HEADLAMP WASHER(-0207.3))Click on part number or name to see its details and price:
| 84593 NUT,HEADLAMP WASHER
84598 BOLT,HEADLAMP WASHER
84246E TUBE,WINDSHIELD WASHER
84296E CLIP,WINDSHIELD WASHER
84294B GROMMET,WINDSHIELD WASHER
84246D TUBE,WINDSHIELD WASHER
84247D TUBE,WINDSHIELD WASHER MOTOR SIDE
84221C HOSE,WINDSHIELD WASHER TANK FILLER
84295E JOINT,WINDSHIELD WASHER
84295F JOINT,WINDSHIELD WASHER
84221B HOSE,WINDSHIELD WASHER TANK FILLER
84224 MOTOR,WINDSHIELD WASHER
84242 TANK,WINDSHIELD WASHER
84233 GASKET,WINDSHIELD WASHER TANK INLET
84204 CAP,WINDSHIELD WASHER TANK FILLER
84295B JOINT,WINDSHIELD WASHER
84247C TUBE,WINDSHIELD WASHER MOTOR SIDE
84246C TUBE,WINDSHIELD WASHER
84225 NOZZLE,WINDSHIELD WASHER
84246B TUBE,WINDSHIELD WASHER
84296B CLIP,WINDSHIELD WASHER
84247B TUBE,WINDSHIELD WASHER MOTOR SIDE
84296C CLIP,WINDSHIELD WASHER
84295D JOINT,WINDSHIELD WASHER
84296D CLIP,WINDSHIELD WASHER
84295C JOINT,WINDSHIELD WASHER
84298 BOLT,WINDSHIELD WASHER
Go to top |
|
Схема 4
(WASHER..W/O HEADLAMP WASHER(0208.1-))Click on part number or name to see its details and price:
| 84246E TUBE,WINDSHIELD WASHER
84296E CLIP,WINDSHIELD WASHER
84294B GROMMET,WINDSHIELD WASHER
84246D TUBE,WINDSHIELD WASHER
84247D TUBE,WINDSHIELD WASHER MOTOR SIDE
84221C HOSE,WINDSHIELD WASHER TANK FILLER
84295E JOINT,WINDSHIELD WASHER
84295F JOINT,WINDSHIELD WASHER
84221B HOSE,WINDSHIELD WASHER TANK FILLER
84224 MOTOR,WINDSHIELD WASHER
84242 TANK,WINDSHIELD WASHER
84233 GASKET,WINDSHIELD WASHER TANK INLET
84247C TUBE,WINDSHIELD WASHER MOTOR SIDE
84225 NOZZLE,WINDSHIELD WASHER
84296B CLIP,WINDSHIELD WASHER
84247B TUBE,WINDSHIELD WASHER MOTOR SIDE
84296C CLIP,WINDSHIELD WASHER
84295D JOINT,WINDSHIELD WASHER
84296D CLIP,WINDSHIELD WASHER
84295C JOINT,WINDSHIELD WASHER
84204 CAP,WINDSHIELD WASHER TANK FILLER
84298 BOLT,WINDSHIELD WASHER
84218B FLOAT,WINDSHIELD WASHER TANK
84218C FLOAT,WINDSHIELD WASHER TANK
Go to top |
|
