Mitsubishi Minicab U41V HLKHF Bravo-MZ-G (HIGH-ROOF), 3FA/T Chassis electricalRear exterior lamp

MS820078 - Rear exterior lamp for Minicab HLKHF

Click on red number to get the exact price

No	PNC#	OEM part number	Required per car	Name	Spec	Notes	Color
1	80399D	MS820078	04	BULB,TAIL LAMP	12V-16W(W16W)?18W(921)			1991.12.1 - 1993.11.3	HLKHF < BRAVO-MZ-G(HIGH-ROOF),3FA/T	2.22 to 3.29 USD
2	80399D	MS820078	04	BULB,TAIL LAMP	12V-16W(W16W)?18W(921)			1993.12.1 - 1999.08.3	ALL <	2.22 to 3.29 USD

More than 1 spare part found. Please define it more accurately before ordering.

Схема 1
(-9311.3)

Click on part number or name to see its details and price:

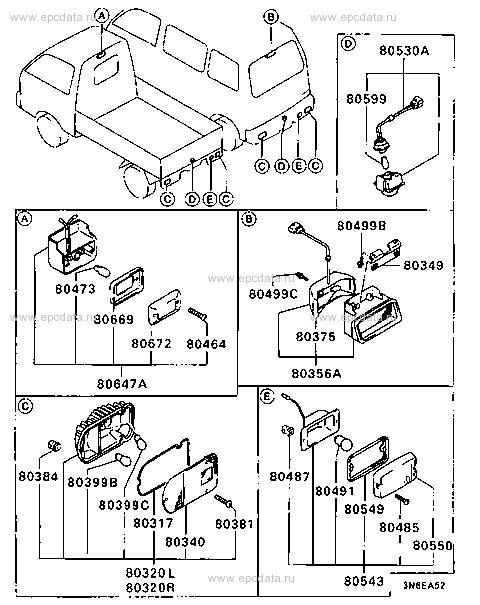

Scheme 1

80530A LAMP ASSY,LICENSE PLATE
80599 BULB,LICENSE PLATE LAMP
80499C SCREW,STOP LAMP
80499B SCREW,STOP LAMP
80349 BRACKET,HIGH MOUNTED STOP LAMP
80375 BULB,STOP LAMP
80356A LAMP ASSY,HIGH MOUNTED STOP
80381 SCREW,TAIL LAMP
80320L LAMP KIT,COMBINATION,RR LH
80320R LAMP KIT,COMBINATION,RR RH

Go to top

Схема 2
(9312.1-(EXC BRAVO GX))

Click on part number or name to see its details and price:

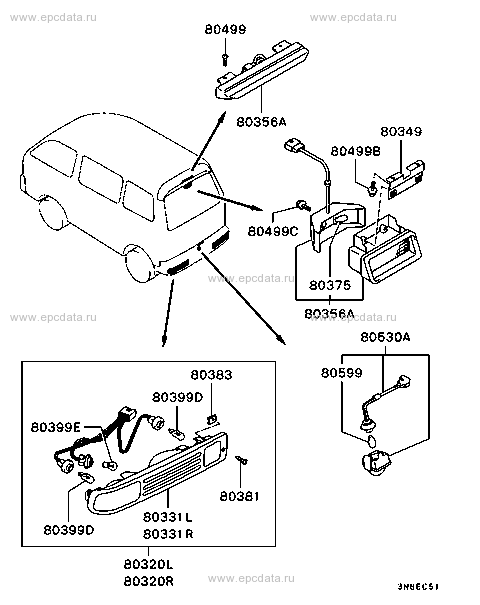

Scheme 2

80530A LAMP ASSY,LICENSE PLATE
80599 BULB,LICENSE PLATE LAMP
80499 SCREW,STOP LAMP
80356A LAMP ASSY,HIGH MOUNTED STOP
80383 NUT,TAIL LAMP
80399E BULB,TAIL LAMP
80399D BULB,TAIL LAMP
80381 SCREW,TAIL LAMP
80331L LAMP UNIT,COMBINATION,RR LH
80331R LAMP UNIT,COMBINATION,RR RH
80320L LAMP KIT,COMBINATION,RR LH
80320R LAMP KIT,COMBINATION,RR RH
80499C SCREW,STOP LAMP
80499B SCREW,STOP LAMP
80349 BRACKET,HIGH MOUNTED STOP LAMP
80375 BULB,STOP LAMP

Go to top

Схема 3
(BRAVO GX)

Click on part number or name to see its details and price:

Scheme 3

80530A LAMP ASSY,LICENSE PLATE
80599 BULB,LICENSE PLATE LAMP
80381 SCREW,TAIL LAMP
80399D BULB,TAIL LAMP
80399E BULB,TAIL LAMP
80383 NUT,TAIL LAMP
80320L LAMP KIT,COMBINATION,RR LH
80320R LAMP KIT,COMBINATION,RR RH
80356A LAMP ASSY,HIGH MOUNTED STOP
80499 SCREW,STOP LAMP
80331L LAMP UNIT,COMBINATION,RR LH
80331R LAMP UNIT,COMBINATION,RR RH
80375 BULB,STOP LAMP
80499B SCREW,STOP LAMP
80349 BRACKET,HIGH MOUNTED STOP LAMP
80499C SCREW,STOP LAMP

Go to top
