Схема 2
(A/C PIPING)Click on part number or name to see its details and price:
| 87035 HOSE,A/C COMPRESSOR DISCHARGE
87585B CLIP,A/C PIPING
87051 PIPE,A/C CONDENSER OUTLET
87036 HOSE,A/C COMPRESSOR SUCTION
87012 BRACKET,A/C RECEIVER
87076 SWITCH,A/C REFRIGERANT PRESSURE
87065A RECEIVER ASSY,A/C
87587 BRACKET,A/C PIPING
87054B PIPE,A/C RECEIVER OUTLET
87585C CLIP,A/C PIPING
87668E O-RING,A/C PIPING
87668B O-RING,A/C PIPING
87668C O-RING,A/C PIPING
87668D O-RING,A/C PIPING
Go to top |
|

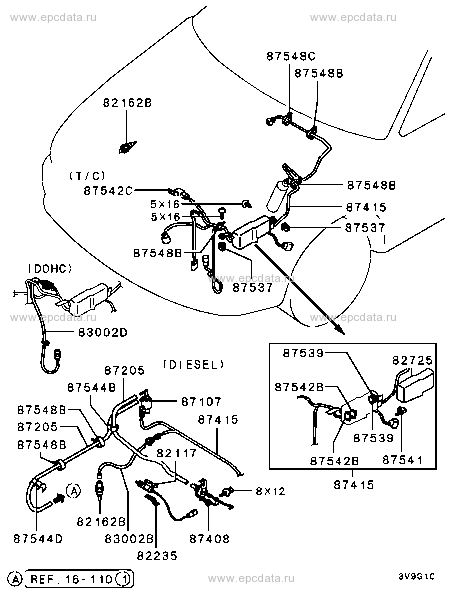

Схема 3
(A/C CONTROL)Click on part number or name to see its details and price:
| 87548C BAND,A/C CONTROL EQUIP
87542C RELAY,A/C CONTROL EQUIP
87548B BAND,A/C CONTROL EQUIP
87415 HARNESS,A/C CONTROL
87537 GROMMET,A/C CONTROL EQUIP
82162B SWITCH,WATER TEMPERATURE
82117 SWITCH,ACCEL LEVER POSITION
87205 HOSE,A/C CONTROL VACUUM
87544B CLAMP,A/C CONTROL EQUIP
87544D CLAMP,A/C CONTROL EQUIP
82235 BRACKET,ACCEL LEVER POSITION SWITCH
83002B HARNESS,A/C CONTROL JOINT
87107 VALVE,A/C VACUUM SOLENOID
87541 DIODE,A/C CONTROL EQUIP
87539 FUSE,A/C CONTROL EQUIP
87542B RELAY,A/C CONTROL EQUIP
82725 COVER,RELAY BOX
87408 ACTUATOR,A/C ENG IDLE CONTROL
Go to top |
|
|
|
|
|
