1310A171 - Water pipe & thermostat for Lancer SJGFZ

Click on red number to get the exact price


No PNC# OEM part number Required
per car
Name Spec Notes Color
1 10717 MD342255 01 PIPE,T/C WATER RETURN 2000.12.1 - 2002.11.3 ALL
<
35.42 USD
2 10717 MN143305 01 PIPE,T/C WATER RETURN 2002.12.1 - 2005.01.3 ALL
<
 14.64
to 20.12 USD
3 10717 1310A171 01 PIPE,T/C WATER RETURN 2005.02.1 - 2007.04.3 ALL
<
10.40 USD

More than 1 spare part found. Please define it more accurately before ordering.

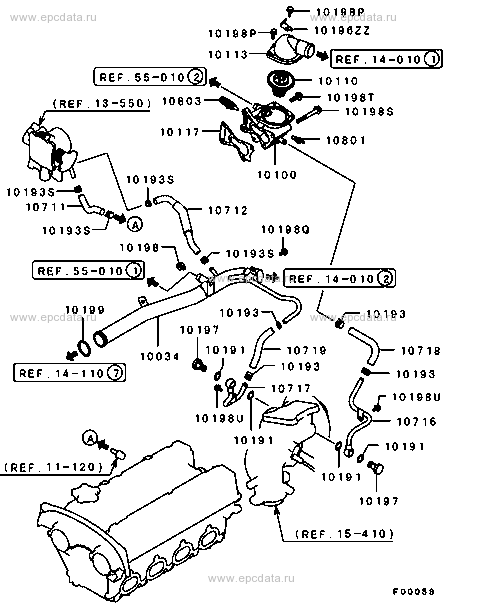

Схема 1 Схема 2 Схема 3


Схема 1
(-0211.3)

Click on part number or name to see its details and price:

Scheme 1

10193 CLIP,COOLING WATER LINE
10199 O-RING,COOLING WATER LINE
10191 GASKET,COOLING WATER LINE
10198S BOLT,COOLING WATER LINE
10198T BOLT,COOLING WATER LINE
10110 THERMOSTAT KIT
10193S CLIP,COOLING WATER LINE
10196ZZ BRACKET,COOLING WATER LINE
10197 EYEBOLT,COOLING WATER LINE
10719 HOSE,T/C WATER RETURN
10198Q BOLT,COOLING WATER LINE
10711 HOSE,THROTTLE BODY WATER FEED
10803 SENSOR UNIT,WATER TEMPERATURE
10198 BOLT,COOLING WATER LINE
10113 FITTING,COOLING WATER OUTLET HOSE
10100 CASE,THERMOSTAT
10716 PIPE,T/C WATER FEED
10718 HOSE,T/C WATER FEED
10198P BOLT,COOLING WATER LINE
10034 PIPE,WATER PUMP INLET
10199P O-RING,COOLING WATER LINE
10712 HOSE,THROTTLE BODY WATER RETURN
10117 GASKET,THERMOSTAT CASE
10198U BOLT,COOLING WATER LINE
10717 PIPE,T/C WATER RETURN
10801 GAUGE UNIT,WATER TEMPERATURE

Go to top

Схема 2
(0212.1-0501.3)

Click on part number or name to see its details and price:

Scheme 2

10113 FITTING,COOLING WATER OUTLET HOSE
10100 CASE,THERMOSTAT
10198P BOLT,COOLING WATER LINE
10197 EYEBOLT,COOLING WATER LINE
10801 GAUGE UNIT,WATER TEMPERATURE
10193S CLIP,COOLING WATER LINE
10191 GASKET,COOLING WATER LINE
10193 CLIP,COOLING WATER LINE
10716 PIPE,T/C WATER FEED
10198S BOLT,COOLING WATER LINE
10196ZZ BRACKET,COOLING WATER LINE
10198 BOLT,COOLING WATER LINE
10034 PIPE,WATER PUMP INLET
10712 HOSE,THROTTLE BODY WATER RETURN
10719 HOSE,T/C WATER RETURN
10717 PIPE,T/C WATER RETURN
10198U BOLT,COOLING WATER LINE
10198Q BOLT,COOLING WATER LINE
10110 THERMOSTAT KIT
10117 GASKET,THERMOSTAT CASE
10803 SENSOR UNIT,WATER TEMPERATURE
10198T BOLT,COOLING WATER LINE
10199 O-RING,COOLING WATER LINE
10711 HOSE,THROTTLE BODY WATER FEED
10718 HOSE,T/C WATER FEED

Go to top

Схема 3
(0502.1-)

Click on part number or name to see its details and price:

Scheme 3

10191 GASKET,COOLING WATER LINE
10198T BOLT,COOLING WATER LINE
10197 EYEBOLT,COOLING WATER LINE
10113 FITTING,COOLING WATER OUTLET HOSE
10198P BOLT,COOLING WATER LINE
10198Q BOLT,COOLING WATER LINE
10803 SENSOR UNIT,WATER TEMPERATURE
10100 CASE,THERMOSTAT
10198ZZ BOLT,COOLING WATER LINE
10199 O-RING,COOLING WATER LINE
10199P O-RING,COOLING WATER LINE
10717 PIPE,T/C WATER RETURN
10196ZZ BRACKET,COOLING WATER LINE
10198U BOLT,COOLING WATER LINE
10716 PIPE,T/C WATER FEED
10193 CLIP,COOLING WATER LINE
10718 HOSE,T/C WATER FEED
10719 HOSE,T/C WATER RETURN
10193S CLIP,COOLING WATER LINE
10712 HOSE,THROTTLE BODY WATER RETURN
10117 GASKET,THERMOSTAT CASE
10801 GAUGE UNIT,WATER TEMPERATURE
10110 THERMOSTAT KIT
10198ZB BOLT,COOLING WATER LINE
10196ZB BRACKET,COOLING WATER LINE
10198 BOLT,COOLING WATER LINE
10034 PIPE,WATER PUMP INLET
10711 HOSE,THROTTLE BODY WATER FEED
10198S BOLT,COOLING WATER LINE

Go to top
