Схема 1

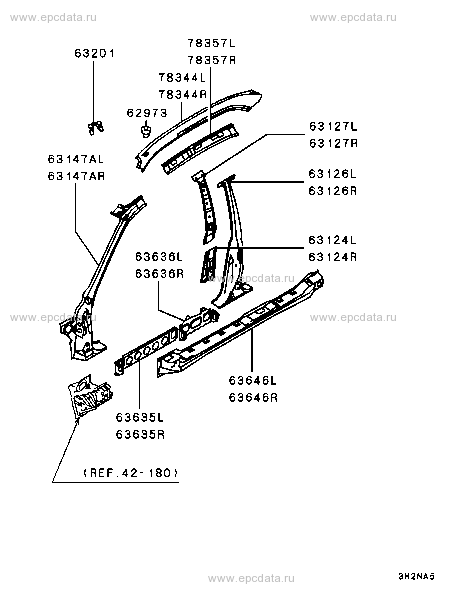

(FRONT(GALANT))Click on part number or name to see its details and price:
| 63124R PILLAR,CTR LWR INR RH
63124L PILLAR,CTR LWR INR LH
63126R PILLAR,CTR OTR RH
63126L PILLAR,CTR OTR LH
63127R PILLAR,CTR UPR INR RH
63127L PILLAR,CTR UPR INR LH
78357L RAIL,ROOF SIDE,INR LH
78357R RAIL,ROOF SIDE,INR RH
63636L REINFORCEMENT,SIDE SILL,CTR LH
63636R REINFORCEMENT,SIDE SILL,CTR RH
63635L REINFORCEMENT,SIDE SILL,LH
63635R REINFORCEMENT,SIDE SILL,RH
63646L SIDE SILL,FR FLOOR,OTR LH
63646R SIDE SILL,FR FLOOR,OTR RH
78344L RAIL,ROOF SIDE,OTR LH
78344R RAIL,ROOF SIDE,OTR RH
63147AL PILLAR ASSY,FR LH
63147AR PILLAR ASSY,FR RH
Go to top |
|
Схема 2

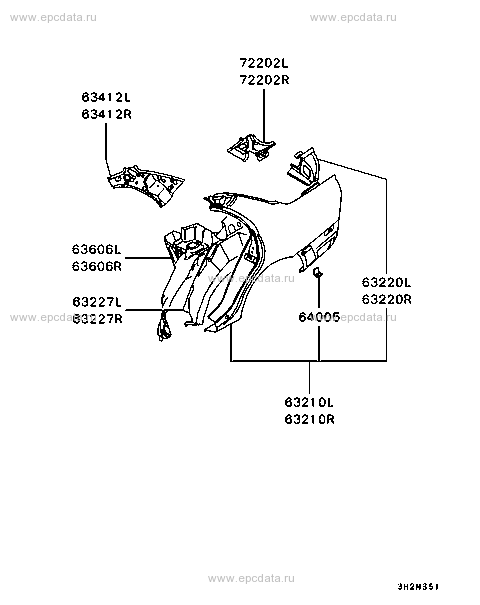

(REAR(GALANT..SEDAN))Click on part number or name to see its details and price:
| 63412R PILLAR,RR INR RH
63412L PILLAR,RR INR LH
72202R BRACE,RR SHELF,RH
72202L BRACE,RR SHELF,LH
64005 BRACKET,RR BUMPER SIDE
63220R PANEL,QTR CORNER,RH
63220L PANEL,QTR CORNER,LH
63606R PANEL,RR WHEELHOUSE,INR RH
63606L PANEL,RR WHEELHOUSE,INR LH
63227R PANEL,QTR,INR RH
63227L PANEL,QTR,INR LH
63210R PANEL,QTR,OTR RH
63210L PANEL,QTR,OTR LH
Go to top |
|
Схема 3
(REAR(ETERNA))Click on part number or name to see its details and price:
| 72202R BRACE,RR SHELF,RH
72202L BRACE,RR SHELF,LH
64005 BRACKET,RR BUMPER SIDE
63606R PANEL,RR WHEELHOUSE,INR RH
63606L PANEL,RR WHEELHOUSE,INR LH
63227R PANEL,QTR,INR RH
63227L PANEL,QTR,INR LH
63412R PILLAR,RR INR RH
63412L PILLAR,RR INR LH
63220R PANEL,QTR CORNER,RH
63220L PANEL,QTR CORNER,LH
63210R PANEL,QTR,OTR RH
63210L PANEL,QTR,OTR LH
Go to top |
|
Схема 4

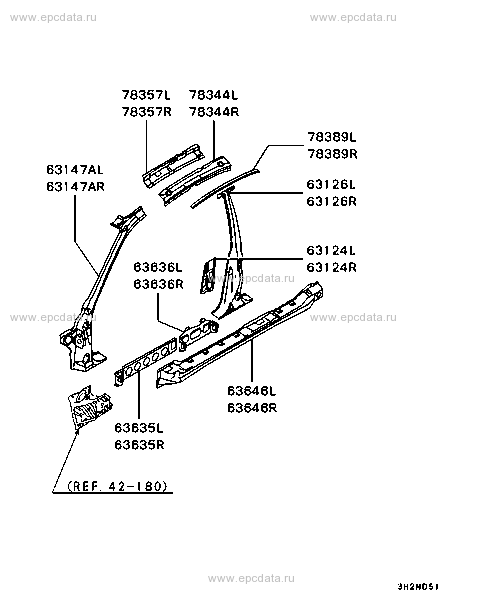

(FRONT(EMERAUDE))Click on part number or name to see its details and price:
| 63147AR PILLAR ASSY,FR RH
63147AL PILLAR ASSY,FR LH
63646R SIDE SILL,FR FLOOR,OTR RH
63646L SIDE SILL,FR FLOOR,OTR LH
63635R REINFORCEMENT,SIDE SILL,RH
63635L REINFORCEMENT,SIDE SILL,LH
63636R REINFORCEMENT,SIDE SILL,CTR RH
63636L REINFORCEMENT,SIDE SILL,CTR LH
63126L PILLAR,CTR OTR LH
63126R PILLAR,CTR OTR RH
63124L PILLAR,CTR LWR INR LH
63124R PILLAR,CTR LWR INR RH
78344R RAIL,ROOF SIDE,OTR RH
78344L RAIL,ROOF SIDE,OTR LH
78357R RAIL,ROOF SIDE,INR RH
78357L RAIL,ROOF SIDE,INR LH
Go to top |
|
Схема 5

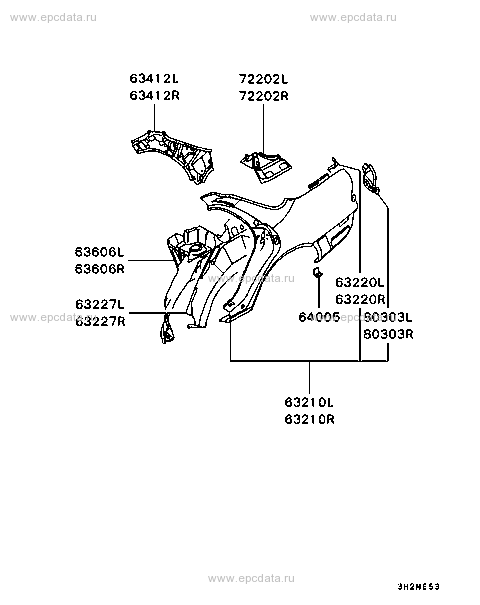

(REAR(EMERAUDE))Click on part number or name to see its details and price:
| 63220R PANEL,QTR CORNER,RH
63220L PANEL,QTR CORNER,LH
63606R PANEL,RR WHEELHOUSE,INR RH
63606L PANEL,RR WHEELHOUSE,INR LH
63227R PANEL,QTR,INR RH
63227L PANEL,QTR,INR LH
63210R PANEL,QTR,OTR RH
63210L PANEL,QTR,OTR LH
72202R BRACE,RR SHELF,RH
72202L BRACE,RR SHELF,LH
63412R PILLAR,RR INR RH
63412L PILLAR,RR INR LH
64005 BRACKET,RR BUMPER SIDE
Go to top |
|
Схема 6
(REAR(GALANT..HATCH BACK))Click on part number or name to see its details and price:
| 64005 BRACKET,RR BUMPER SIDE
63220R PANEL,QTR CORNER,RH
63220L PANEL,QTR CORNER,LH
63227R PANEL,QTR,INR RH
63227L PANEL,QTR,INR LH
63210R PANEL,QTR,OTR RH
63210L PANEL,QTR,OTR LH
63606R PANEL,RR WHEELHOUSE,INR RH
63606L PANEL,RR WHEELHOUSE,INR LH
Go to top |
|
Схема 7

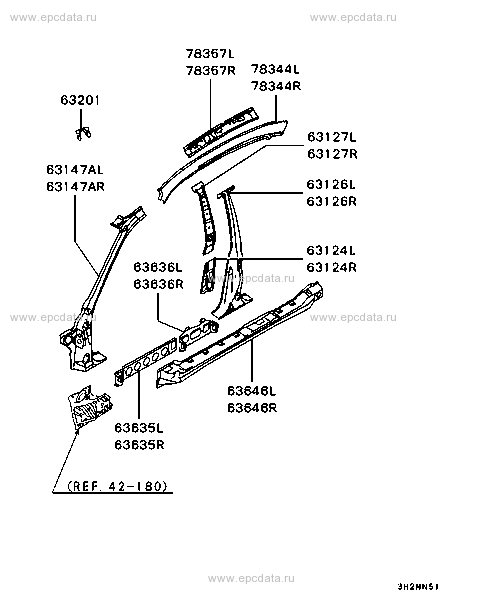

(FRONT(GALANT..HATCH BACK))Click on part number or name to see its details and price:
| 63147AR PILLAR ASSY,FR RH
63147AL PILLAR ASSY,FR LH
78344R RAIL,ROOF SIDE,OTR RH
78344L RAIL,ROOF SIDE,OTR LH
63646R SIDE SILL,FR FLOOR,OTR RH
63646L SIDE SILL,FR FLOOR,OTR LH
63635R REINFORCEMENT,SIDE SILL,RH
63635L REINFORCEMENT,SIDE SILL,LH
63636R REINFORCEMENT,SIDE SILL,CTR RH
63636L REINFORCEMENT,SIDE SILL,CTR LH
78357R RAIL,ROOF SIDE,INR RH
78357L RAIL,ROOF SIDE,INR LH
63127L PILLAR,CTR UPR INR LH
63127R PILLAR,CTR UPR INR RH
63126L PILLAR,CTR OTR LH
63126R PILLAR,CTR OTR RH
63124L PILLAR,CTR LWR INR LH
63124R PILLAR,CTR LWR INR RH
Go to top |
|
