Front seat for Delica Space Gear NSEUF

Click on red number to get the exact price

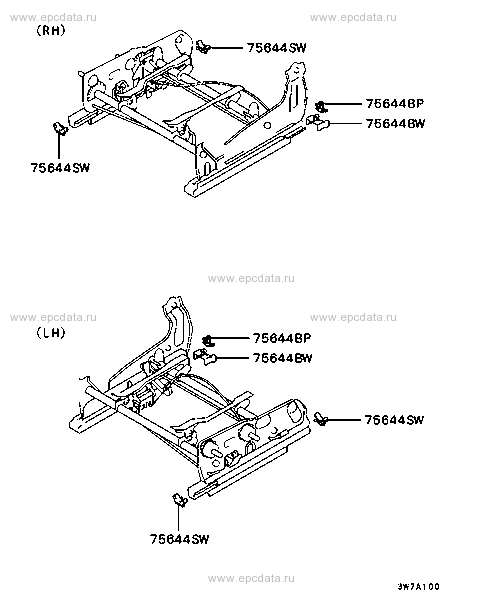

Схема 1 (ADJUSTER INNER PARTS..MANUAL) Click on part number or name to see its details and price: 75644SW CAP,FR SEAT SLIDE ADJUSTER 75644BW CAP,FR SEAT SLIDE ADJUSTER 75644BP CAP,FR SEAT SLIDE ADJUSTER Go to top

Схема 2 (ADJUSTER INNER PARTS..POWER) Click on part number or name to see its details and price: Go to top

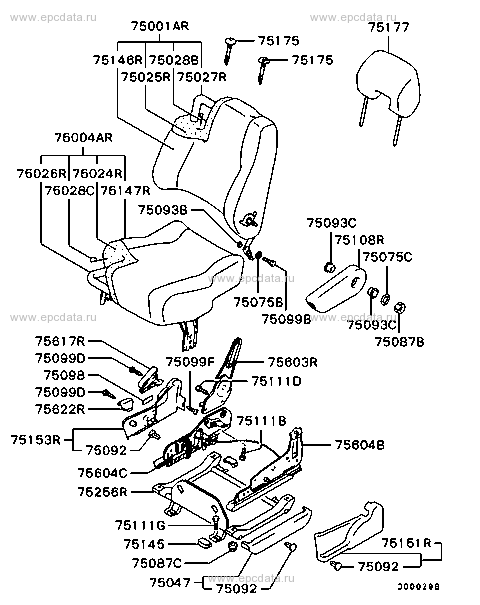

Схема 3 (RH..NORMAL(W/O ARMREST)) Click on part number or name to see its details and price: 75175 GUIDE,FR SEAT HEADREST 75146R COVER,FR SEAT BACK,RH 75027R FRAME,FR SEAT BACK,RH 75025R PAD,FR SEAT BACK,RH 75028B WIRE,FR SEAT TRIMMING 75001AR BACK ASSY,FR SEAT,RH 75093B BUSHING,FR SEAT 75099B SCREW,FR SEAT 75075B WASHER,FR SEAT 75147R COVER,FR SEAT CUSHION,RH 75028C WIRE,FR SEAT TRIMMING 75024R PAD,FR SEAT CUSHION,RH 75026R FRAME,FR SEAT CUSHION,RH 75004AR CUSHION ASSY,FR SEAT,RH 75177 HEADREST,FR SEAT 75047 COVER,FR SEAT STAND 75145 COVER,FR SEAT ANCHOR 75111G BOLT,FR SEAT 75087C NUT,FR SEAT 75092 CLIP,FR SEAT 75617R KNOB,FR SEAT RECLINING ADJUSTER,RH 75153R COVER,FR SEAT SIDE SHIELD,RH 75622R KNOB,FR SEAT SLIDE ADJUSTER,RH 75098 CAP,FR SEAT 75099D SCREW,FR SEAT 75099F SCREW,FR SEAT 75111D BOLT,FR SEAT 75603R ADJUSTER,FR SEAT RECLINING,RH 75111B BOLT,FR SEAT 75256R STAND,FR SEAT,RH 75604B ADJUSTER,FR SEAT SLIDE 75604C ADJUSTER,FR SEAT SLIDE 75151R COVER,FR SEAT HINGE,RH Go to top

Схема 4 (LH..NORMAL(W/O ARMREST)) Click on part number or name to see its details and price: 75024L PAD,FR SEAT CUSHION,LH 75004AL CUSHION ASSY,FR SEAT,LH 75177 HEADREST,FR SEAT 75026L FRAME,FR SEAT CUSHION,LH 75175 GUIDE,FR SEAT HEADREST 75146L COVER,FR SEAT BACK,LH 75027L FRAME,FR SEAT BACK,LH 75025L PAD,FR SEAT BACK,LH 75028B WIRE,FR SEAT TRIMMING 75001AL BACK ASSY,FR SEAT,LH 75147L COVER,FR SEAT CUSHION,LH 75028C WIRE,FR SEAT TRIMMING 75093B BUSHING,FR SEAT 75099B SCREW,FR SEAT 75075B WASHER,FR SEAT 75256L STAND,FR SEAT,LH 75145 COVER,FR SEAT ANCHOR 75111G BOLT,FR SEAT 75087C NUT,FR SEAT 75276 TRAY,FR SEAT UNDER 75223R RAIL,FR SEAT UNDER TRAY,RH 75092 CLIP,FR SEAT 75047 COVER,FR SEAT STAND 75111B BOLT,FR SEAT 75604D ADJUSTER,FR SEAT SLIDE 75153L COVER,FR SEAT SIDE SHIELD,LH 75622L KNOB,FR SEAT SLIDE ADJUSTER,LH 75099D SCREW,FR SEAT 75603L ADJUSTER,FR SEAT RECLINING,LH 75617L KNOB,FR SEAT RECLINING ADJUSTER,LH 75604E ADJUSTER,FR SEAT SLIDE 75111D BOLT,FR SEAT 75099C SCREW,FR SEAT 75099F SCREW,FR SEAT 75151L COVER,FR SEAT HINGE,LH 75988 SCREW,FR SEAT UNDER TRAY 75223L RAIL,FR SEAT UNDER TRAY,LH 75098 CAP,FR SEAT Go to top

Схема 5 (LH..NORMAL(W/ARMREST)) Click on part number or name to see its details and price: 75024L PAD,FR SEAT CUSHION,LH 75026L FRAME,FR SEAT CUSHION,LH 75147L COVER,FR SEAT CUSHION,LH 75028C WIRE,FR SEAT TRIMMING 75099B SCREW,FR SEAT 75075B WASHER,FR SEAT 75256L STAND,FR SEAT,LH 75145 COVER,FR SEAT ANCHOR 75111G BOLT,FR SEAT 75087C NUT,FR SEAT 75111B BOLT,FR SEAT 75603L ADJUSTER,FR SEAT RECLINING,LH 75099F SCREW,FR SEAT 75604E ADJUSTER,FR SEAT SLIDE 75111D BOLT,FR SEAT 75004AL CUSHION ASSY,FR SEAT,LH 75027L FRAME,FR SEAT BACK,LH 75028B WIRE,FR SEAT TRIMMING 75025L PAD,FR SEAT BACK,LH 75146L COVER,FR SEAT BACK,LH 75087B NUT,FR SEAT 75099H SCREW,FR SEAT 75093C BUSHING,FR SEAT 75075C WASHER,FR SEAT 75604D ADJUSTER,FR SEAT SLIDE 75001AL BACK ASSY,FR SEAT,LH 75175 GUIDE,FR SEAT HEADREST 75177 HEADREST,FR SEAT 75093B BUSHING,FR SEAT 75092 CLIP,FR SEAT 75151L COVER,FR SEAT HINGE,LH 75223L RAIL,FR SEAT UNDER TRAY,LH 75223R RAIL,FR SEAT UNDER TRAY,RH 75276 TRAY,FR SEAT UNDER 75988 SCREW,FR SEAT UNDER TRAY 75047 COVER,FR SEAT STAND 75617L KNOB,FR SEAT RECLINING ADJUSTER,LH 75099D SCREW,FR SEAT 75622L KNOB,FR SEAT SLIDE ADJUSTER,LH 75098 CAP,FR SEAT 75153L COVER,FR SEAT SIDE SHIELD,LH Go to top

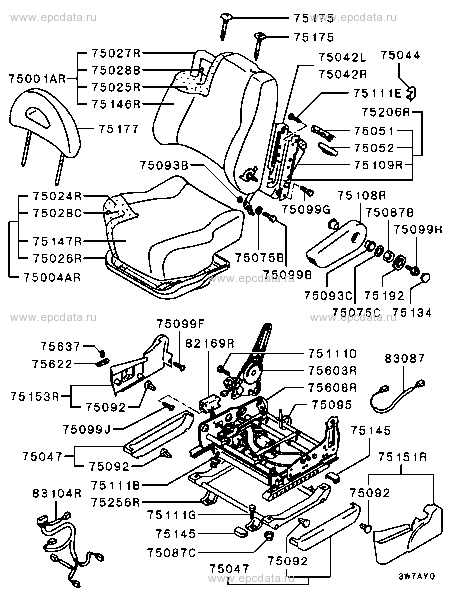

Схема 6 (RH..W/HEIGHT CONTROL) Click on part number or name to see its details and price: 75075B WASHER,FR SEAT 75099B SCREW,FR SEAT 75093B BUSHING,FR SEAT 75146R COVER,FR SEAT BACK,RH 75027R FRAME,FR SEAT BACK,RH 75025R PAD,FR SEAT BACK,RH 75028B WIRE,FR SEAT TRIMMING 75001AR BACK ASSY,FR SEAT,RH 75026R FRAME,FR SEAT CUSHION,RH 75028C WIRE,FR SEAT TRIMMING 75024R PAD,FR SEAT CUSHION,RH 75147R COVER,FR SEAT CUSHION,RH 75099F SCREW,FR SEAT 75603R ADJUSTER,FR SEAT RECLINING,RH 75256R STAND,FR SEAT,RH 75047 COVER,FR SEAT STAND 75175 GUIDE,FR SEAT HEADREST 75004AR CUSHION ASSY,FR SEAT,RH 75622R KNOB,FR SEAT SLIDE ADJUSTER,RH 75099D SCREW,FR SEAT 75098 CAP,FR SEAT 75617R KNOB,FR SEAT RECLINING ADJUSTER,RH 75153R COVER,FR SEAT SIDE SHIELD,RH 75092 CLIP,FR SEAT 75111B BOLT,FR SEAT 75151R COVER,FR SEAT HINGE,RH 75111D BOLT,FR SEAT 75111G BOLT,FR SEAT 75145 COVER,FR SEAT ANCHOR 75087C NUT,FR SEAT 75087B NUT,FR SEAT 75075C WASHER,FR SEAT 75093C BUSHING,FR SEAT 75099H SCREW,FR SEAT 75177 HEADREST,FR SEAT Go to top

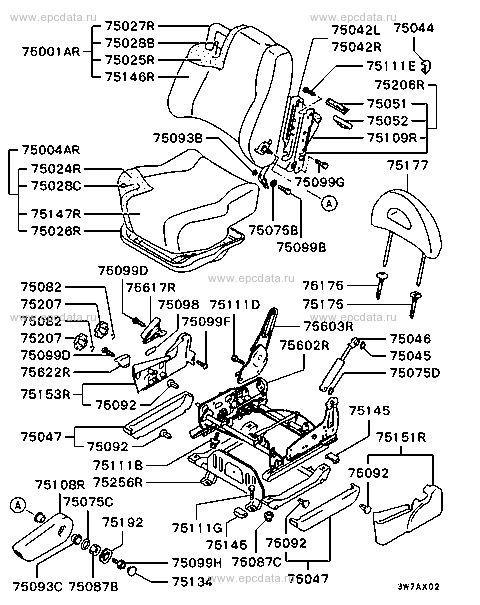

Схема 7 (RH..POWER) Click on part number or name to see its details and price: 75075B WASHER,FR SEAT 75099B SCREW,FR SEAT 75093B BUSHING,FR SEAT 75146R COVER,FR SEAT BACK,RH 75027R FRAME,FR SEAT BACK,RH 75025R PAD,FR SEAT BACK,RH 75028B WIRE,FR SEAT TRIMMING 75001AR BACK ASSY,FR SEAT,RH 75026R FRAME,FR SEAT CUSHION,RH 75028C WIRE,FR SEAT TRIMMING 75147R COVER,FR SEAT CUSHION,RH 75111G BOLT,FR SEAT 75145 COVER,FR SEAT ANCHOR 75087C NUT,FR SEAT 75111D BOLT,FR SEAT 75256R STAND,FR SEAT,RH 75047 COVER,FR SEAT STAND 75004AR CUSHION ASSY,FR SEAT,RH 75092 CLIP,FR SEAT 75111B BOLT,FR SEAT 75151R COVER,FR SEAT HINGE,RH 75075C WASHER,FR SEAT 75093C BUSHING,FR SEAT 75099H SCREW,FR SEAT 75087B NUT,FR SEAT 75024R PAD,FR SEAT CUSHION,RH 75099F SCREW,FR SEAT 75603R ADJUSTER,FR SEAT RECLINING,RH 75177 HEADREST,FR SEAT 75175 GUIDE,FR SEAT HEADREST 75153R COVER,FR SEAT SIDE SHIELD,RH Go to top

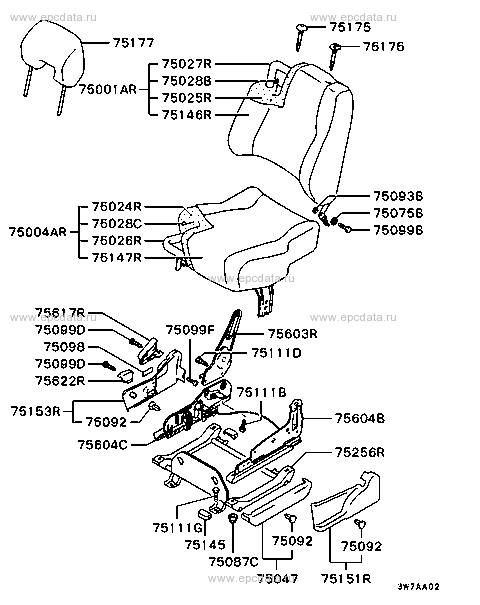

Схема 8 (RH..NORMAL(W/ARMREST)) Click on part number or name to see its details and price: 75175 GUIDE,FR SEAT HEADREST 75622R KNOB,FR SEAT SLIDE ADJUSTER,RH 75099D SCREW,FR SEAT 75099F SCREW,FR SEAT 75111D BOLT,FR SEAT 75603R ADJUSTER,FR SEAT RECLINING,RH 75111B BOLT,FR SEAT 75604B ADJUSTER,FR SEAT SLIDE 75147R COVER,FR SEAT CUSHION,RH 75024R PAD,FR SEAT CUSHION,RH 75026R FRAME,FR SEAT CUSHION,RH 75004AR CUSHION ASSY,FR SEAT,RH 75001AR BACK ASSY,FR SEAT,RH 75027R FRAME,FR SEAT BACK,RH 75028B WIRE,FR SEAT TRIMMING 75025R PAD,FR SEAT BACK,RH 75146R COVER,FR SEAT BACK,RH 75075B WASHER,FR SEAT 75099B SCREW,FR SEAT 75093B BUSHING,FR SEAT 75177 HEADREST,FR SEAT 75098 CAP,FR SEAT 75617R KNOB,FR SEAT RECLINING ADJUSTER,RH 75604C ADJUSTER,FR SEAT SLIDE 75256R STAND,FR SEAT,RH 75092 CLIP,FR SEAT 75153R COVER,FR SEAT SIDE SHIELD,RH 75047 COVER,FR SEAT STAND 75111G BOLT,FR SEAT 75145 COVER,FR SEAT ANCHOR 75087C NUT,FR SEAT 75151R COVER,FR SEAT HINGE,RH 75028C WIRE,FR SEAT TRIMMING 75093C BUSHING,FR SEAT 75087B NUT,FR SEAT 75075C WASHER,FR SEAT Go to top

Delica Space Gear PD8W
