Fuel tank for Delica Space Gear HSNUF9

Click on red number to get the exact price

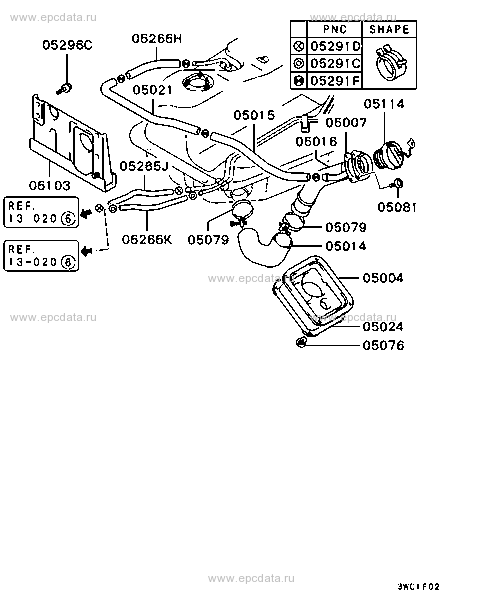

Схема 1 (FUEL FILLER PIPE) Click on part number or name to see its details and price: 05296C BOLT,FUEL TANK 05265H HOSE,FUEL TANK 05114 CAP,FUEL TANK 05081 SCREW,FUEL FILLER PIPE 05021 PIPE,FUEL FILLER 05265J HOSE,FUEL TANK 05079 CLAMP,FUEL FILLER PIPE 05015 HOSE,FUEL FILLER NECK BREATHER 05291C CLIP,FUEL TANK 05291F CLIP,FUEL TANK 05265K HOSE,FUEL TANK 05007 GASKET,FUEL FILLER NECK 05016 NECK,FUEL FILLER 05291D CLIP,FUEL TANK 05024 PLATE,FUEL FILLER NECK REINF 05076 CLIP,FUEL FILLER PIPE 05004 COVER,FUEL FILLER NECK 05014 HOSE,FUEL FILLER 05103 BRACKET,FUEL TANK Go to top

Схема 2 (FUEL TANK) Click on part number or name to see its details and price: 05100A FUEL TANK ASSY 05289B NUT,FUEL TANK 05265G HOSE,FUEL TANK 05265B HOSE,FUEL TANK 05265E HOSE,FUEL TANK 05265C HOSE,FUEL TANK 05290 JOINT,FUEL TANK 05152 FILTER,FUEL IN TANK 05191 VALVE,FUEL TANK SAFETY 05186 VALVE,FUEL TANK VAPOR HOSE 2-WAY 05261 GASKET,FUEL TANK PUMP 05117 CASE,FUEL TANK BREATHER 05265D HOSE,FUEL TANK 05259 GASKET,FUEL TANK GAUGE 05145 GAUGE UNIT,FUEL TANK 05289C NUT,FUEL TANK 05289D NUT,FUEL TANK 05286 GASKET,FUEL TANK 05298 PLUG,FUEL TANK 05171 PROTECTOR,FUEL TANK,LWR 05188 VALVE,FUEL FILLER NECK 05291C CLIP,FUEL TANK 05291D CLIP,FUEL TANK 05291B CLIP,FUEL TANK 05296B BOLT,FUEL TANK 05291W CLIP,FUEL TANK 05158 PIPE,FUEL TANK FILTER Go to top
