MitsubishiAirtrekCU4WLRHCZ 24V-S (4WD), S4FA/TRear suspensionRear susp

MR519029 - Rear susp for Airtrek LRHCZ

Click on red number to get the exact price


No PNC# OEM part number Required
per car		 Name Spec Notes Color
1 41350AL MR519029 01 ARM ASSY,RR SUSP TRAILING,LH 2001.03.1 - 2001.12.3 4WD
LRHCZ < 24V-S(4WD),S4FA/T		  198.62
to 213.28 USD
2 41350AL MR519029 01 ARM ASSY,RR SUSP TRAILING,LH 2002.01.1 - 2002.04.3 4WD
LRHCZ < 24V-S(4WD),S4FA/T		  198.62
to 213.28 USD
3 41350AL MR519029 01 ARM ASSY,RR SUSP TRAILING,LH 2002.05.1 - 2002.11.3 4WD
LRHCZ < 24V-S(4WD),S4FA/T		  198.62
to 213.28 USD
4 41350AL MR519029 01 ARM ASSY,RR SUSP TRAILING,LH 2002.12.1 - 2003.12.3 4WD
LRHCZ < 24V-S(4WD),S4FA/T		  198.62
to 213.28 USD

More than 1 spare part found. Please define it more accurately before ordering.






Схема 1 Схема 2 Схема 3 Схема 4

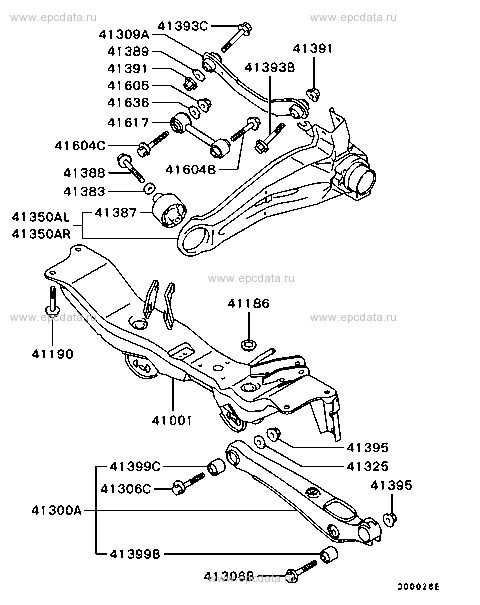

Схема 1
(SUSPENSION ARM,CROSSMEMBER,ETC..4WD,GDI)

Click on part number or name to see its details and price:

Scheme 1

41350AR ARM ASSY,RR SUSP TRAILING,RH
41350AL ARM ASSY,RR SUSP TRAILING,LH
41395 NUT,RR SUSP LWR ARM
41604C BOLT,RR SUSP ASSIST LINK
41393B BOLT,RR SUSP UPR ARM
41391 NUT,RR SUSP UPR ARM
41001 CROSSMEMBER,RR SUSP
41325 PLATE,RR SUSP LWR ARM
41186 PLUG,RR SUSP CROSSMEMBER
41399B BUSHING,RR SUSP LWR ARM
41306B BOLT,RR SUSP LWR ARM
41399C BUSHING,RR SUSP LWR ARM
41300A ARM ASSY,RR SUSP,LWR
41306C BOLT,RR SUSP LWR ARM
41190 BOLT,RR SUSP CROSSMEMBER
41387 BUSHING,INDEPENDENT RR SUSP ARM
41604B BOLT,RR SUSP ASSIST LINK
41388 BOLT,INDEPENDENT RR SUSP ARM
41383 WASHER,INDEPENDENT RR SUSP ARM
41605 NUT,RR SUSP ASSIST LINK
41309A ARM ASSY,RR SUSP,UPR
41389 WASHER,RR SUSP UPR ARM
41636 PLATE,RR SUSP ASSIST LINK
41617 LINK,RR SUSP ASSIST
41393C BOLT,RR SUSP UPR ARM

Go to top

Схема 2
(DIFF SUPPORT..GDI)

Click on part number or name to see its details and price:

Scheme 2

34993B BOLT,RR DIFF RR MOUNTING
34993C BOLT,RR DIFF RR MOUNTING
34229 STOPPER,RR DIFF RR SUPPORT,LWR
34031C BUSHING,RR DIFF RR MOUNTING
34225C SUPPORT,RR DIFF,RR
34228 STOPPER,RR DIFF RR SUPPORT,UPR
34031D BUSHING,RR DIFF RR MOUNTING
34031B BUSHING,RR DIFF RR MOUNTING
34225B SUPPORT,RR DIFF,RR
34993E BOLT,RR DIFF RR MOUNTING
34993D BOLT,RR DIFF RR MOUNTING
34992C NUT,RR DIFF RR MOUNTING

Go to top

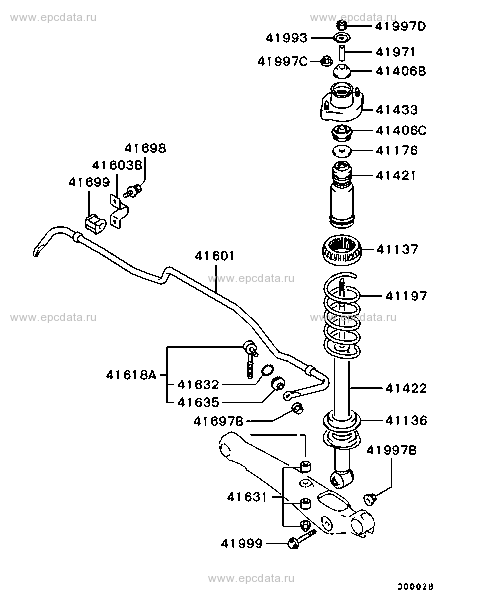

Схема 3
(SHOCK ABSORBER & STABILIZER,ETC..GDI)

Click on part number or name to see its details and price:

Scheme 3

41997C NUT,RR SUSP COIL SPRING
41993 WASHER,RR SUSP COIL SPRING
41997D NUT,RR SUSP COIL SPRING
41971 COLLAR,RR SUSP COIL SPRING
41406B BUSHING,RR SUSP COIL SPRING
41433 INSULATOR,RR SHOCK ABSORBER
41137 PAD,RR SUSP SPRING,UPR
41406C BUSHING,RR SUSP COIL SPRING
41421 DAMPER,RR SHOCK ABSORBER
41197 SPRING,RR SUSP COIL
41422 SHOCK ABSORBER,RR SUSP
41999 BOLT,RR SUSP COIL SPRING
41631 LINK KIT,RR SUSP STABILIZER BAR SIDE
41176 PLATE,RR SUSP SPRING DAMPER
41136 PAD,RR SUSP SPRING,LWR
41997B NUT,RR SUSP COIL SPRING
41603B BRACKET,RR SUSP STABILIZER BAR
41699 BUSHING,RR SUSP STABILIZER
41601 BAR,RR SUSP STABILIZER
41698 BOLT,RR SUSP STABILIZER
41618A LINK ASSY,RR SUSP STABILIZER BAR
41635 COVER,RR SUSP STABILIZER LINK
41632 RING,RR SUSP STABILIZER LINK DUST COVER
41697B NUT,RR SUSP STABILIZER

Go to top

Схема 4
(DIFF SUPPORT..EXC GDI)

Click on part number or name to see its details and price:

Scheme 4

34993B BOLT,RR DIFF RR MOUNTING
34993C BOLT,RR DIFF RR MOUNTING
34229 STOPPER,RR DIFF RR SUPPORT,LWR
34031C BUSHING,RR DIFF RR MOUNTING
34225C SUPPORT,RR DIFF,RR
34993E BOLT,RR DIFF RR MOUNTING
34993D BOLT,RR DIFF RR MOUNTING
34992C NUT,RR DIFF RR MOUNTING

Go to top
